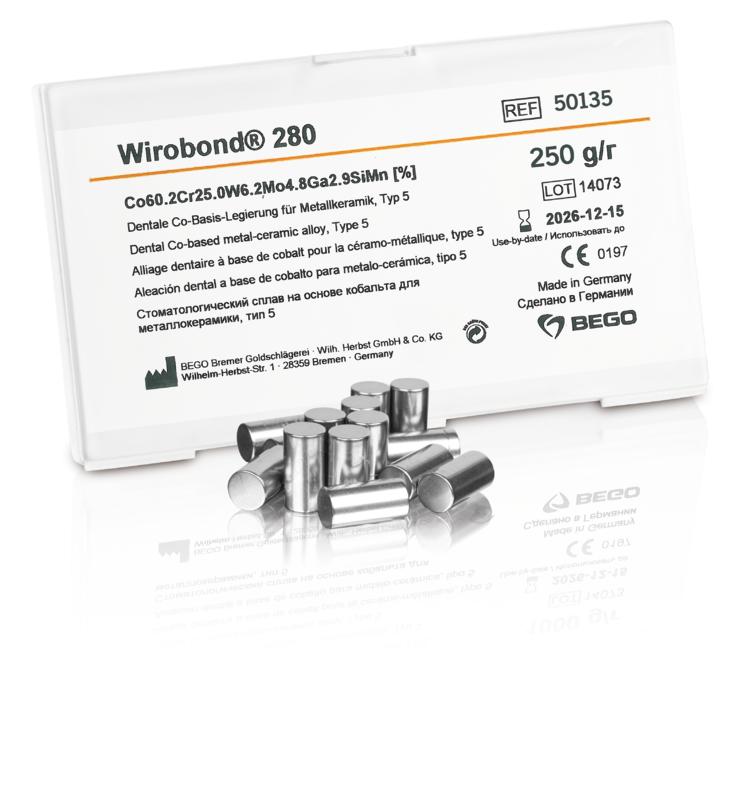

Wirobond® 280 250 g

• Wirobond^® 280 is setting standards in the non-precious metal-to-ceramic alloy segment because of a Vickers hardness of 280 HV10, it can be finished to a particularly high standard

• Extremely corrosion resistant thanks to the optimal interaction of the indispensable elements chrome and molybdenum

• Very good melting and casting properties

• No prolonged cooling necessary*, even with large spans

• Secure bonding with ceramics

• High strength irrespective of the span size, and therefore a wide range of indications

• Reliable processing in accordance with the proven BEGO system

• Biocompatible and corrosion-resistant

• Item name

  Wirobond® 280
• Color code

  8
• Density g/cm³

  8,6 g/cm³
• Composition

  Co 60,2 · Cr 25,0 · W 6,2 · Mo 4,8 · Ga 2,9 · Mn · Si
• Solidustemp

  1355 °C
• Liquidustemp.

  1430 °C
• Product description

  Cobalt-Chromium alloy for crowns & bridges
• Vickershardness

  280 HV10
• Casting temperature

  1500 °C
• CTE

  14,3 10ˉ⁶ Kˉ¹
• Preheat temp. to

  1000 °C
• Base metall

  Cobalt
• Content/amount

  250 g pack
• Iso type ISO22674

  4
• Yield strength

  515 MPa
• Tensile strength

  680 MPa
• Elongation at break

  14 %
• Preheat temp. from

  900 °C
• Elastic modul

  215 GPa
